Application purpose:
- For manual flush actuation of urinals
- For Geberit frames for urinal with front actuation
- For Geberit frames for urinal with top actuation
- For installation in installation sets for Geberit urinal flush controls (from year of manufacture 2009)
Characteristics:
- Flush plate with securing bar
- Flush time setting with air nozzles (pneumatic)
- Low flush actuation force
- Short stroke movement
- Flush actuation when the actuator button is released
- Flush volume can be reduced to 0.5 l per flush with regulating screw of installation set
- Tap group II in accordance with DIN 4109
Technical data:
- Flow pressure1-8 bar
- Minimum flow pressure1 bar
- Maximum test pressure, water16 bar
- Maximum test pressure, air / inert gas3 bar
- Relative humidity< 100 %
- Maximum operating temperature, water30 °C
- Actuation force< 12 N
- Flow rate at 1 bar without flow limiter0.3 l/s
- Flow rate at 1 bar with flow limiter0.24 l/s
- Calculated flow rate0.3 l/s
- Flush time, adjustment range4/8/12 s
Scope of delivery:
- Flush plate type 10
- Pneumatic flush actuation, pre-mounted on mounting frame
- Pneumatic valve
- Fastening material

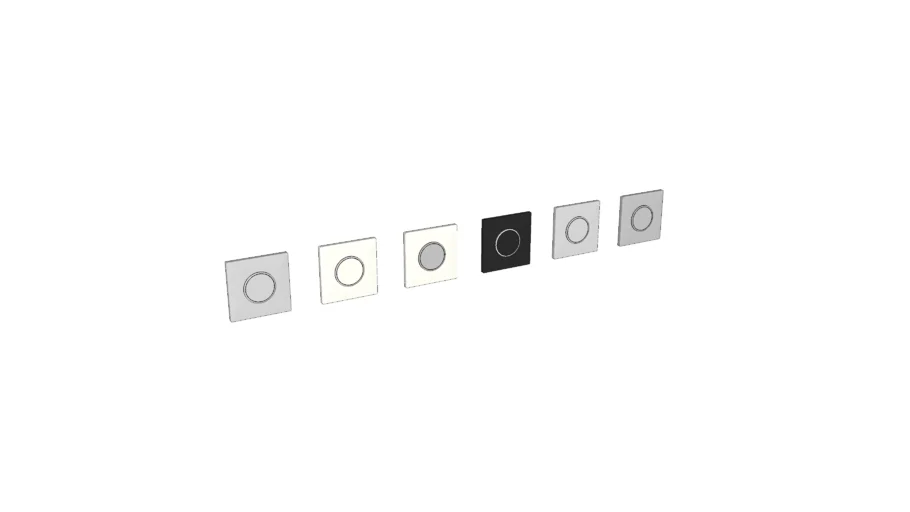

Article:
116.015.KH.1 gloss chrome / matt chrome / gloss chrome
116.015.KJ.1 white / gloss chrome / white
116.015.KL.1 white / matt chrome / matt chrome
116.015.KM.1 black / bright chrome / black
116.015.KN.1 matt chrome / gloss chrome / matt chrome
116.015.SN.1 stainless steel brushed/polished/brushed
